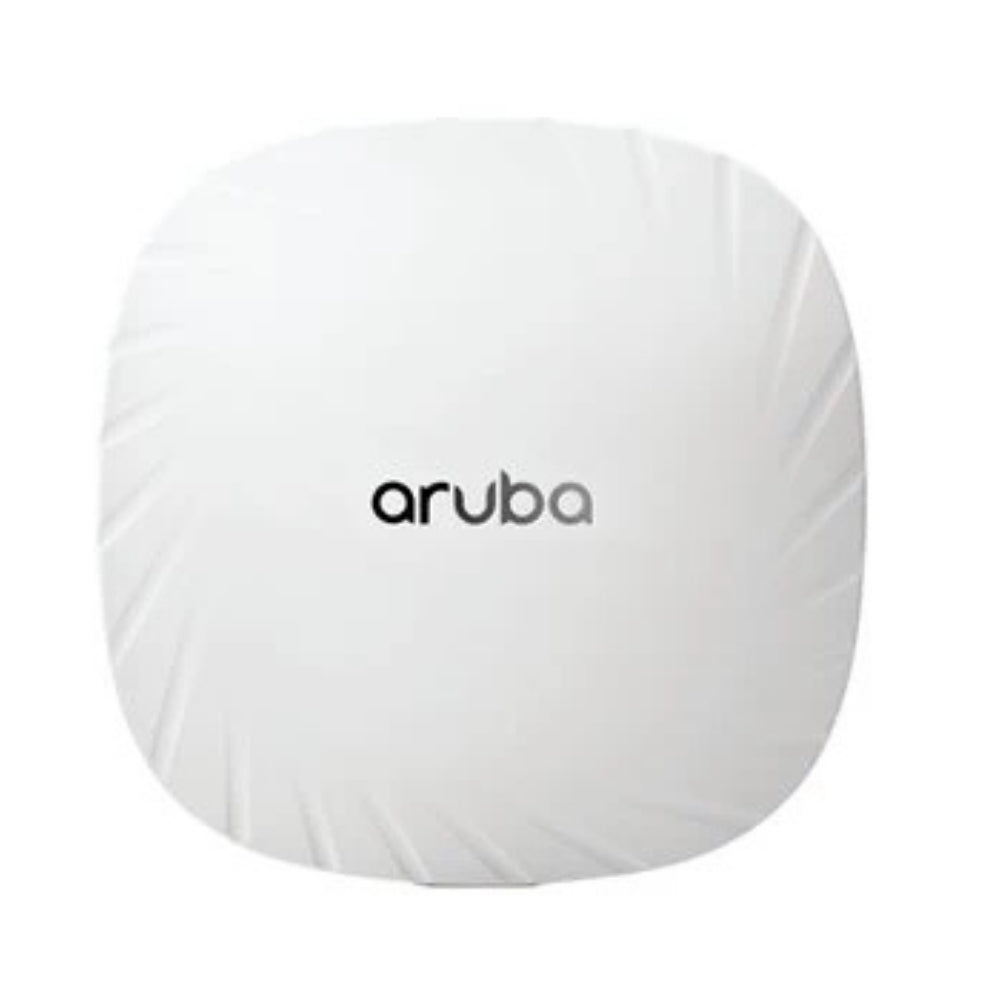

Aruba AP-505 High Efficiency Wi-Fi 6 Access Point Dual Band Wireless Solution

Aruba AP-505 High Efficiency Wi-Fi 6 Access Point Dual Band Wireless Solution

LE 28,750.00 EGP
LE 28,750.00 EGP
Sale Sold out
Shipping calculated at checkout.
Wi-Fi Features
Wi-Fi Standard: Wi-Fi 6 (802.11ax)
Dual-Radio: Simultaneous dual-band operation on 2.4 GHz and 5 GHz frequencies
Maximum Data Rate: Up to 1.77 Gbps (1.2 Gbps on 5 GHz and 574 Mbps on 2.4 GHz)
MU-MIMO: Supports downlink MU-MIMO for multiple device support
OFDMA: Orthogonal Frequency Division Multiple Access for multi-user efficiency
Radio Specifications
2.4 GHz Band: +21 dBm (18 dBm per chain) transmit power
5 GHz Band: +21 dBm (18 dBm per chain) transmit power
Receiver Sensitivity: -93 dBm (1 Mbps) for Bluetooth and -98 dBm (1 Mbps) for 2.4 GHz Wi-Fi
Antennas and Coverage
Integrated Antennas: Dual-band downtilt omni-directional antennas with peak gain of 4.9 dBi in 2.4 GHz and 5.7 dBi in 5 GHz
Antenna Pattern: Optimized for horizontal ceiling-mounted orientation with a downtilt angle of roughly 30 degrees
Power and Connectivity
Power over Ethernet: 802.3af/at PoE (class 3 or 4) with 48Vdc nominal voltage
DC Power: 12Vdc nominal voltage with +/- 5% tolerance
USB Port: 2.0 host interface (Type A connector) capable of sourcing up to 1A / 5W
Security Features
WPA3 and Enhanced Open: Support for stronger encryption and authentication
Trusted Platform Module (TPM): Secure storage of credentials and keys
Management and Deployment
Aruba Central: Cloud-native network operations for unified management, AI, and security
Zero Touch Provisioning: Simplifies deployment and configuration
ClientMatch Technology: AI-powered client optimization for Wi-Fi 6 and Wi-Fi 5 devices
Physical Characteristics
Dimensions: 160mm (W) x 161mm (D) x 37mm (H)
Weight: 500g (unit), 645g (shipping)
Operating Temperature: 0°C to +50°C (+32°F to +122°F)
Humidity: 5% to 93% non-condensing
