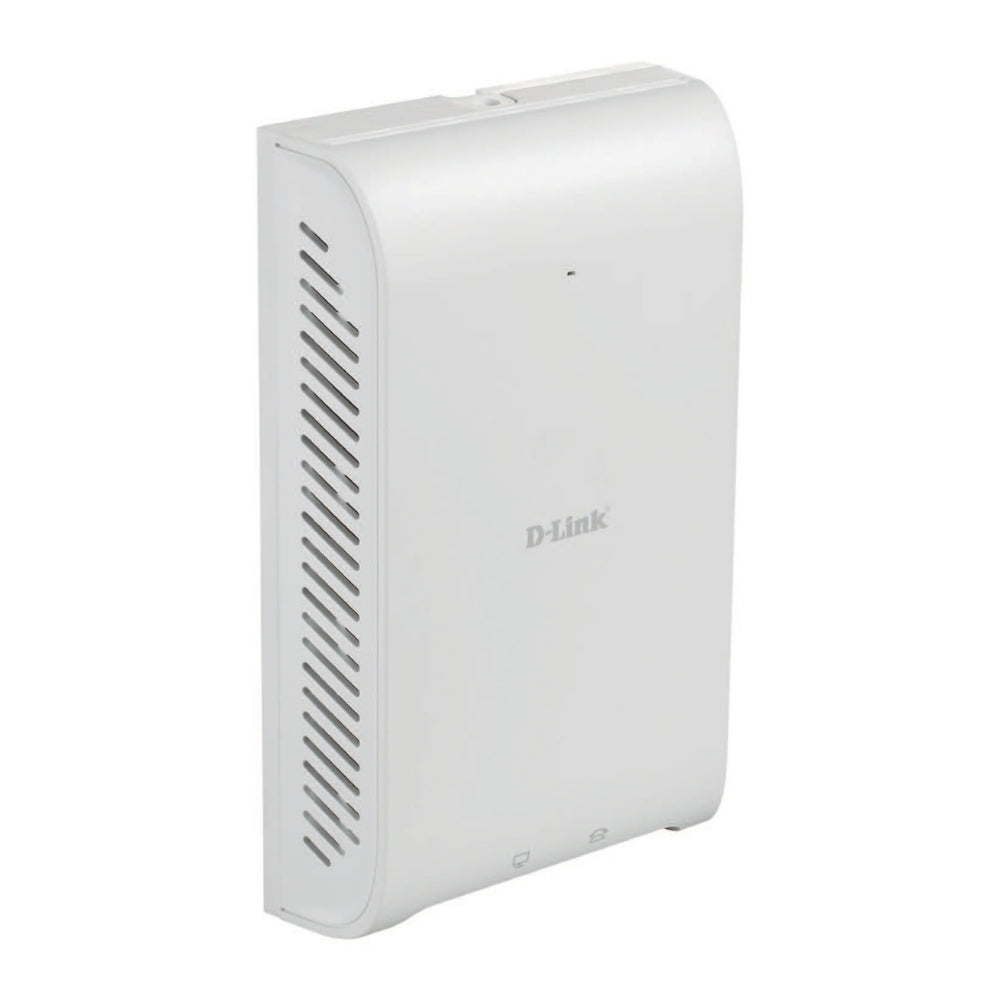

D-Link DAP-2620 Nuclias Connect AC1200 Wave 2 Dual Band Wireless Access Point

Product Description

Wireless Standards
IEEE 802.11ac Wave 2/n/a 5 GHz
IEEE 802.11n/g/b 2.4 GHz

Wi-Fi Speeds
2.4 GHz: up to 300 Mbps
5 GHz: up to 867 Mbps
Total Combined Speed: up to 1167 Mbps (AC1200)

Frequency
Dual-Band: 2.4 GHz + 5 GHz

Antennas
2 × Internal Antennas
Optimized design for stable coverage and performance

Ports
1 × 10/100/1000 Mbps LAN (supports 802.3af Power over Ethernet)
1 × Console Port (RJ45)

Operating Modes
Access Point Mode
Wireless Distribution System (WDS)
Wireless Client Mode

Wireless Functions
MU-MIMO (Multi-User, Multiple-Input, Multiple-Output)
Band Steering for automatic best-band selection
Load Balancing for multiple users
Fast Roaming (802.11k/r/v) support

Security
WPA/WPA2-Personal & WPA/WPA2-Enterprise encryption
Supports 8 SSIDs per band (16 total) with VLAN tagging
MAC Address Filtering
RADIUS Server authentication
Rogue AP Detection

Management
Standalone Web UI
D-Link Nuclias Connect Software Controller support (free license)
SNMP v1, v2c, v3
CLI (Command Line Interface) via Telnet/SSH

Power Options
Power over Ethernet (802.3af compliant)
12V/1A Power Adapter

Dimensions
4.3 × 4.3 × 1.5 in (110 × 110 × 38 mm)

Additional Features
Business-grade design for secure and scalable Wi-Fi networks
Supports centralized management with Nuclias Connect
Seamless roaming for uninterrupted connectivity
Wall-plate mounting design, perfect for hotels, classrooms, and offices
