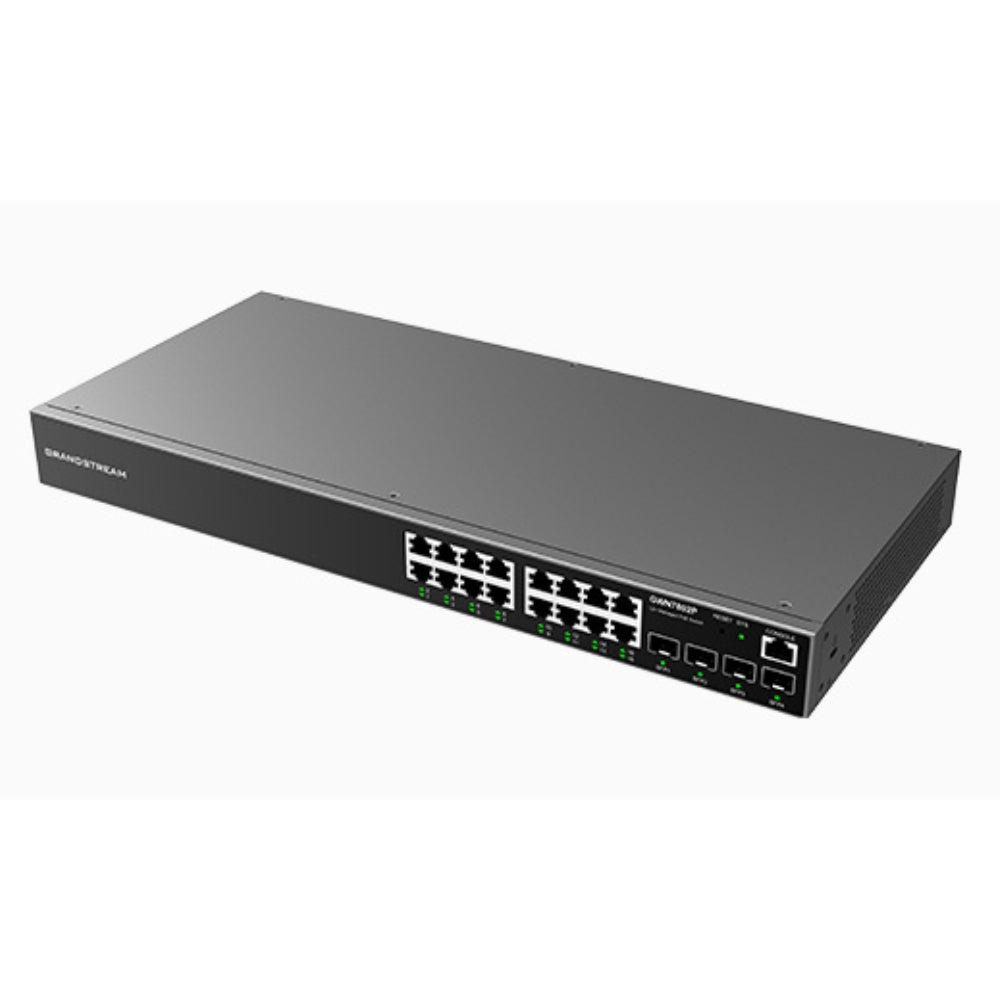

Grandstream GWN7802P 16-Port Gigabit Managed PoE Switch with 4 SFP Uplink Ports Advanced Networking Solution

Product Description

Device Type
Managed Gigabit Ethernet Switch with PoE

Ports
16 × 10/100/1000 Mbps RJ45 Ports with PoE/PoE+ Support
4 × Gigabit SFP Uplink Ports

Switching Capacity
40 Gbps

Forwarding Rate
29.76 Mpps

MAC Address Table
16K MAC Address Entries

Buffer Memory
12 Mb Packet Buffer

Standards Compliance
IEEE 802.3i (10BASE-T Ethernet)
IEEE 802.3u (100BASE-TX Fast Ethernet)
IEEE 802.3ab (1000BASE-T Gigabit Ethernet)
IEEE 802.3z (1000BASE-X)
IEEE 802.3af/at (PoE/PoE+)
IEEE 802.3x (Full Duplex and Flow Control)
IEEE 802.1p/802.1Q (QoS, VLAN Tagging)
IEEE 802.1D/802.1w/802.1s (Spanning Tree Protocols)
IEEE 802.3az (Energy-Efficient Ethernet)

PoE Features
Supports IEEE 802.3af/at PoE/PoE+
Total PoE Budget: Up to 240W
Max Power per Port: 30W

Management
Web User Interface
Command Line Interface (CLI) via SSH/Telnet
SNMP v1/v2c/v3
RMON
Syslog
Dual Firmware Images

Security Features
Port Security
Access Control Lists (ACL)
802.1X Authentication
DHCP Snooping
DoS Protection

Power Supply
Internal Power Supply
AC Input: 100–240V, 50/60Hz

Power Consumption
Max: ~260W (with full PoE load)

LED Indicators
Power
System
Per-Port Link/Activity and PoE

Mounting Options
Rack Mount (1U)
Desktop

Dimensions
440 × 210 × 44 mm

Weight
~3.2 kg

Additional Features

Advanced L2+ switching features for enterprise networks

High-performance uplinks via SFP ports

Silent and energy-efficient design

Ideal for SMBs, offices, and IP surveillance deployments
